A door that water intrusion air around its edges costs you money every month the problem goes unaddressed. Drafts, temperature swings near doorways, and higher utility bills all trace back to failed or missing weather stripping. Installing new weather stripping on your exterior doors is one of the highest-return home improvement projects you can do with basic tools, a few hours, and materials that cost less than a single tank of gas.

Does weather stripping go on the door or the door frame? The answer is both, depending on the type. Frame-mounted strips (foam tape, V-strip, and bulb seals) attach to the door stop or jamb face and compress against the door face when it closes. Door sweeps and threshold seals attach to the bottom edge of the door itself and seal against the threshold below. Most complete installations use frame-mounted stripping on the three sides (hinge side, latch side, top) and a separate door sweep or bottom seal on the fourth side.

If any part of this project gives you pause, whether that is cutting a tight kerf strip, fitting an automatic door bottom on a heavy steel door, or diagnosing why a door still water intrusion after new stripping, caulking and weatherstripping is a service Ace Handyman Services handles regularly. You can complete this project yourself, and this guide will walk you through it completely. But the option to hand it off is always there.

Quick Overview: What This Project Actually Involves

  • Stage 1 - Assessment (15 to 30 minutes): Inspect the door, frame, and threshold for damage. Identify where air is entering. Remove old weather stripping completely.
  • Stage 2 - Selection (30 minutes to 1 hour): Match material type to your door type and climate. Purchase strips, door sweep, and installation tools.
  • Stage 3 - Measurement and cutting (30 to 45 minutes): Measure each side of the door perimeter. Cut strips to length. Test-fit before committing.
  • Stage 4 - Frame installation (45 minutes to 1.5 hours): Install side jamb strips and head (top) strip. Check door closure at each step.
  • Stage 5 - Door sweep installation (30 to 45 minutes): Install bottom seal or automatic door bottom. Adjust height for full contact with threshold.
  • Stage 6 - Testing and adjustment (15 to 30 minutes): Verify seal with the paper test or light test. Adjust as needed.

Total hands-on time for a single exterior door runs two to four hours for most DIYers. A complete home with three or four exterior doors is a comfortable weekend project.

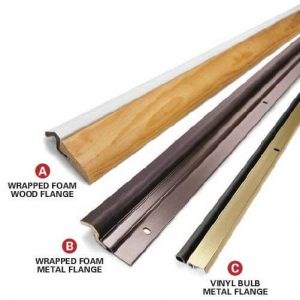

Types of Door Weather Stripping and Material Selection

What are the main types of door weather stripping? The four material categories you will encounter are foam tape, V-strip (also called tension seal), tubular or bulb gasket, and door sweeps. Each serves a different location on the door assembly and performs differently over time. Choosing the right type for each location determines how long your installation lasts and how well it seals.

Foam Tape and Adhesive-Backed Strips

Closed-cell foam tape is the easiest material to install and the least durable. It compresses against the door face when the door closes and rebounds when it opens. Foam tape works well on doors with irregular or slightly warped frames because it conforms to uneven surfaces. The adhesive backing on most foam products loses grip within two to five years in temperature extremes, so consider this a mid-range solution rather than a permanent fix. Use closed-cell foam rather than open-cell; open-cell foam absorbs moisture and degrades faster.

Adhesive-backed EPDM rubber strips perform similarly to foam but outlast it by several years. EPDM handles temperature cycling better than plain foam and maintains its seal profile longer.

V-Strip (Tension Seal)

V-strip is a folded piece of plastic or metal that springs open to fill the gap between the door edge and the door stop. It installs in the channel between the door and the jamb on the hinge side and latch side. Metal V-strip (stainless or aluminum) outlasts plastic versions significantly, often holding its tension for a decade or more. V-strip is invisible when the door is closed and does not interfere with door operation.

Bulb Seals and Tubular Gaskets

Bulb seals and tubular gaskets mount to the door stop face and compress against the door face when the door closes. These come nail-on, screw-on, or with a kerf-mounting spine that slides into a routed channel. Bulb seals create a tight, durable compression seal and are common on exterior doors in cold climates where drafts are severe. The tubular profile collapses slightly under door pressure and springs back when the door opens, maintaining a consistent seal over many cycles. These are the preferred option for high-traffic exterior doors.

Compatibility With Door Materials

Wood doors swell and shrink seasonally, which means your gap measurement in summer may differ from your gap in winter. For wood doors, choose materials with some compression range, like bulb seals or foam with a thicker profile, that can accommodate that movement. Steel and fiberglass doors are more dimensionally stable, so V-strip and kerf-mounted bulb seals work well. Avoid solvent-based adhesives on fiberglass doors as they can react with the door surface; use only manufacturer-approved adhesives or mechanical fasteners.

Essential Tools and Materials for Weather Stripping Installation

Tools You Will Need

  • Tape measure
  • Utility knife or aviation snips (for metal V-strip)
  • Hammer and finish nails (for nail-on bulb seals)
  • Drill and screwdriver bits (for screw-mounted sweeps)
  • Pry bar or stiff putty knife (for removing old stripping)
  • Sandpaper or scraper (for surface prep)
  • Rubbing alcohol or degreaser (for adhesive surface prep)
  • Pencil for marking cut lines
  • Square or combination square for marking straight cuts

Consumables and Hardware

  • Weather stripping material in your chosen type and length (buy 10 percent extra for cuts and mistakes)
  • Door sweep or automatic door bottom appropriate for your threshold height
  • Finish nails (1-inch or 1.5-inch depending on strip type)
  • Mounting screws (typically included with door sweeps)
  • Painter's tape for holding strips in position during test-fit
  • Contact cement or manufacturer-specified adhesive if using adhesive-backed materials on a non-standard surface

Measuring and selecting the right sweep for your bottom gap is often where well-intentioned installations go sideways. The gap between the door bottom and the threshold varies by door and by how much the door has settled. If you want to skip the measuring, fitting, and hardware sourcing, the caulking and weatherstripping service at Ace Handyman Services covers all of it with no equipment to track down or return.

Measuring and Planning Your Weather Stripping Project

How to Measure for Weather Stripping

Measure each side of the door separately. Do not assume they are the same length; even standard doors have slight variations. For the two side jambs, measure from the bottom of the head (top) stop down to the threshold. For the head stop, measure from inside face of one side stop to the inside face of the other. Add two to three inches to each measurement when purchasing strip material; you will trim to exact fit at installation.

For the door sweep, measure the full width of the door bottom from outside edge to outside edge. Most standard exterior doors are 32 or 36 inches wide. Check whether your threshold is a flat surface or has a raised rubber seal already set into it; that affects which sweep style you need.

Checking the Existing Gap

Close the door and use a flashlight from the inside in a dark room. Have someone hold the light on the exterior side and look for light bleeding through around the frame and at the bottom. Mark problem areas with painter's tape. This light test is also your baseline for confirming the installation worked once you are done.

For the side and head gaps, a gap of one-eighth inch or less is typical and manageable with standard strip profiles. Gaps larger than one-quarter inch may need a thicker bulb seal or may indicate a door alignment problem that needs to be corrected before weather stripping will seal reliably.

Installing Weather Stripping on Door Frames and Jambs

What is the proper way to weatherstrip a door frame? Start with the hinge side jamb, then the latch side jamb, then the head. Remove all old stripping before installing new material. Clean the surface completely. Install with the door in the closed position to confirm alignment, and test operation after each strip to catch any interference before you move to the next section.

Foam Strip Installation Technique

Surface preparation determines whether adhesive-backed foam holds long-term. Wipe the door stop face with rubbing alcohol and let it dry completely. Cut the foam strip slightly long, about one-quarter inch. Peel back the first few inches of adhesive backing and press the foam firmly onto the door stop face so that the foam contacts the door face when the door is fully closed. Work down the strip in six-inch sections, pressing firmly as you go. At corners, cut a clean miter or butt the strips cleanly rather than folding them; folded corners leave gaps.

Compress the foam slightly when pressing it down. The goal is a strip that is snug against the door when closed but does not make the door hard to latch. If the door requires noticeably more force to close after installation, the foam profile is too thick for your gap; replace it with a thinner profile.

V-Strip Weather Seal Installation

V-strip installs inside the gap, not on the stop face. Open the door and slide the V-strip into the gap between the door edge and the jamb with the open end of the V facing outward toward the exterior. For nail-on metal V-strip, hold the strip in position and drive finish nails through the pre-punched holes at six to eight inch intervals. Start at the top and work down. Keep the strip straight; a bowed strip will either bind the door or leave a gap somewhere along its length.

For adhesive-backed plastic V-strip, peel and press section by section from top to bottom. Press firmly along the entire length after installation. Metal V-strip is the better long-term choice; the tension it maintains over years of door cycles is more consistent than adhesive plastic.

Door Sweep and Bottom Seal Installation

How are door seals attached to the bottom of doors? The most common method is a screw-mounted sweep that attaches to the interior face of the door bottom. The sweep has a U-channel or fin of rubber or vinyl that extends downward to contact the threshold when the door is closed. Automatic door bottoms use a spring-loaded mechanism that lifts the seal when the door opens and drops it against the threshold as the door closes, reducing wear on the seal material significantly.

Standard Door Sweep Installation

With the door closed, hold the sweep against the interior face of the door bottom so the fin or rubber seal just touches the threshold. Mark the screw hole positions with a pencil. Open the door, drill pilot holes at your marks (use a bit slightly smaller than the screw diameter), and drive the screws. Close the door and confirm the sweep makes consistent contact across the full width of the threshold.

Trim the sweep to the exact door width before mounting. Use a hacksaw or metal snips depending on the sweep housing material. The sweep should extend to but not past the door edges on both sides.

Threshold Compatibility

Standard sweeps work on flat thresholds or threshold with a low raised lip. If your threshold has a built-in rubber insert or a tall raised saddle, you need a sweep profile designed to bridge that threshold shape. Measure the threshold height and profile and bring that measurement when purchasing the sweep. An interlocking threshold-and-sweep system (where the door sweep hooks into a channel in the threshold itself) provides the best seal and is worth the additional installation complexity for high-traffic or high-exposure doors.

Weather Stripping Installation for Different Door Materials

Wood doors require the most ongoing attention because wood moves with humidity and temperature. Install wood door weather stripping in fall when the door is at or near its largest seasonal size. A seal that works in fall will have a little extra space in summer, but a seal fitted to the summer gap may compress too hard in winter and either drag against the door or pop loose.

Steel doors have steel-reinforced cores and often come pre-kerf-routed from the manufacturer for replacement stripping. Kerf-mounted bulb seals or Q-lon compressed foam seals press into this channel without fasteners and replace quickly when worn. Confirm the kerf width on your door matches the spine width of the replacement strip before purchasing; mismatched spines will either fall out or not seat properly.

Fiberglass doors behave similarly to steel in terms of dimensional stability but require care with adhesives. Use only mild adhesive or mechanical fastening on fiberglass to avoid surface damage. Screw-mounted sweeps with rubber gaskets and nail-on or kerf bulb seals are the safest choices.

Testing and Adjusting Your Weather Stripping Installation

The paper test is the standard field check: close the door on a single sheet of printer paper at several points around the frame and at the bottom. If you can pull the paper out without tearing it, the seal is insufficient at that point. You should feel noticeable resistance. Work around the entire perimeter and mark any spots that fail the paper test.

Repeat the light test you did before installation. Close all interior lights and hold a flashlight along the exterior perimeter on a dark day or at night. No light should bleed through at any point. Even a small light gap means air is moving through at that location.

If a section fails the paper test, check whether the strip is positioned correctly on the stop face, whether the door is applying even pressure across that section, and whether the strip profile is thick enough for the gap. A door that contacts the frame unevenly due to hinge sag or frame settling will not seal consistently regardless of the stripping material you use; address the door alignment first.

Troubleshooting Common Weather Stripping Problems

Adhesive-Backed Strips Peeling Away

The most common cause is surface contamination at installation. Old adhesive residue, paint film, dust, or oil from handling prevents proper bonding. Strip the old material completely, clean the surface with rubbing alcohol, and let it dry for at least 15 minutes before applying new adhesive-backed material. In very cold conditions, warm the door stop surface with a heat gun on low before pressing the strip; cold adhesive bonds poorly.

Door Is Difficult to Close After Installation

The strip profile is too thick for the actual gap, or the strip is positioned on the stop face rather than flush. For foam tape, switch to a thinner profile. For bulb seals, reposition the mounting so the seal contacts the door face lightly at full closure rather than compressing hard. A door that requires significant force to latch will eventually prevent the latch bolt from engaging consistently.

Gaps Persist in Specific Spots

Uneven gaps around the door usually indicate door frame issues rather than weather stripping problems. Check hinge tightness first; loose hinge screws let the door sag and create larger gaps on the latch side. Tighten screws or replace with longer screws that bite into the structural jamb behind the door stop. If the frame itself is racked or the door has warped significantly, weather stripping alone will not produce a consistent seal; the underlying issue needs correction.

Door Sweep Drags or Sticks

The sweep is mounted too low. Loosen the mounting screws, raise the sweep until the fin just grazes the threshold at full closure, and retighten. Automatic door bottoms are less prone to this issue because the seal lifts during operation. If drag persists after adjustment, check whether the threshold surface is uneven or has built-up finish or debris that is catching the sweep fin.

Maintenance and Long-Term Care

When should weather stripping be replaced? Inspect weather stripping twice a year, in fall before heating season and in spring before cooling season. Replace stripping when you see cracking or brittleness in rubber or foam, when the seal no longer passes the paper test, when the adhesive is lifting, or when the bulb has collapsed flat and no longer springs back. Under normal use, foam tape lasts two to five years; EPDM rubber and vinyl bulb seals last five to ten years; metal V-strip can last a decade or more. Door sweeps last three to seven years depending on traffic and surface contact.

  • Wipe rubber and foam seals with a damp cloth periodically to remove dirt and debris that can cause premature cracking.
  • Apply a silicone-based conditioner to rubber bulb seals once a year to prevent drying and cracking.
  • Do not paint over weather stripping; paint fills the compression gap and causes the material to bond to the door face, tearing it away on the first opening.
  • Check door sweep contact after any seasonal door adjustment or hinge work.
  • Re-run the paper test after any significant temperature swing in fall and spring; a door that sealed in summer may not seal in winter if the frame or door has moved.
  • Replace all stripping on a door at the same time rather than patching sections; mismatched profiles create pressure inconsistencies and new water intrusion points.

Things to Consider Before You Start

  • Is the door itself in good condition? Weather stripping cannot compensate for a door that does not fit its frame properly. If the door is significantly warped, sagging on its hinges, or has a frame that has settled out of square, address those issues before investing in new stripping.
  • How many doors are you doing? A single door is a straightforward afternoon project. Four or five exterior doors with different threshold heights and door materials will take a full weekend and requires keeping several material types organized simultaneously.
  • Are you comfortable with cutting and fitting? Foam tape forgives minor cutting imprecision. Kerf-mounted bulb seals and automatic door bottoms require clean, measured cuts and accurate fitting to work correctly.
  • What is the condition of the existing frame surface? If paint is peeling or the wood is soft in spots, adhesive-backed materials will not bond well. Mechanical fasteners or a surface repair before installation may be necessary.
  • Do you have an unusual threshold height or non-standard door width? These require sourcing specific hardware rather than off-the-shelf standard sweeps, which adds time to the project.

If any of these questions points toward complexity that goes beyond what you want to take on yourself, that is a reasonable place to hand off. The project is completable DIY, but it rewards patience, accurate measuring, and a systematic approach. Know which side of that line you are on before you start.

Why Homeowners Bring in Ace Handyman Services

Weather stripping is one of those projects where the materials cost almost nothing and the difference between a job done right and a job done over is entirely in the execution. Here is why homeowners regularly ask us to handle it instead.

  • Peace of mind on a job that has to actually work. A door that still water intrusion after a DIY attempt means buying materials twice and spending a second afternoon on the same problem. Our craftsmen do this regularly and know exactly how to fit stripping to the specific door, frame, and threshold combination in front of them.
  • One-year labor warranty. If the installation develops a problem within a year, we come back and fix it. No second-guessing whether you installed the sweep at the right height.
  • No equipment to source, learn, or return. We arrive with the tools, materials, and hardware sized correctly for the job. You do not spend time at the hardware store comparing sweep profiles.
  • Background-checked, multi-skilled W-2 craftsmen. Our technicians are employees, not gig workers. They are vetted, trained, and accountable to a consistent standard of work.
  • Predictable weekday timeline. No lost weekends. Most single-door or multi-door weather stripping jobs are completed in a single scheduled visit.
  • Honest about scope. If a door has an underlying alignment or threshold problem that weather stripping will not fix, we tell you that before installing material that will not perform. We address what actually needs to be addressed.
  • Cleanup included. Old stripping, packaging, and debris are removed. You are left with a sealed door and a clean entryway.

When you are ready to hand this off or want a professional to assess how well your existing seals are performing, reach out to your local Ace Handyman Services office to schedule an appointment. Homeowners trust Ace Handyman Services because we are America's Trusted Handyman.

Frequently Asked Questions

What part of the weather stripping attaches to the door versus the frame?

Frame-mounted strips, including foam tape, V-strip, and bulb seals, attach to the door stop or jamb face and seal against the door face when it closes. Door sweeps and bottom seals attach to the door itself, specifically to the interior face of the door bottom edge, and seal against the threshold below. Most complete installations use both: frame stripping on three sides and a sweep on the bottom.

How long does it take to install weather stripping on a door?

A single exterior door typically takes two to three hours for a first-time installer, including removing old stripping, prepping surfaces, cutting and installing new material, fitting the door sweep, and testing the seal. Experienced DIYers can complete a door in 90 minutes. Budget additional time if you encounter old adhesive residue, a corroded threshold, or a door that needs hinge adjustment before stripping.

Can you install new weather stripping over old?

No. Old stripping must be removed completely before installation. Installing over existing material creates an uneven surface that prevents the new strip from seating correctly, and the old adhesive residue prevents the new adhesive from bonding. Remove old material with a pry bar or stiff putty knife, clean the surface with rubbing alcohol, and start fresh on a clean door stop face.

How do you know if your weather stripping is no longer sealing?

Three reliable tests: the paper test (if you can pull paper through a closed door without resistance, the seal is insufficient), the light test (hold a flashlight on the exterior at night and look for light bleeding in around the frame), and the feel test (hold your hand near the door perimeter on a cold or windy day and feel for air movement). Visible cracking, brittleness, or flat compression in the seal material also indicates it is time to replace.

What is the best type of weather stripping for exterior doors in cold climates?

For cold climates, EPDM rubber bulb seals or tubular gaskets on the frame sides and head provide the best combination of compression range and temperature resistance. Pair them with an automatic door bottom rather than a standard sweep to minimize wear at the threshold. Metal V-strip on the latch side adds a secondary seal layer. Avoid plain open-cell foam in cold climates; it compresses permanently and loses its seal quickly under temperature cycling.

How do you measure weather stripping so you buy the right amount?

Measure each of the three frame sides (both jambs and the head) separately and add the measurements together. For a standard 80-inch-tall, 36-inch-wide door, that is roughly 196 inches, or about 16 to 17 linear feet. Add 10 to 15 percent for cuts and waste. Purchase the door sweep separately based on the exact door width measurement. Always confirm the strip profile thickness matches your actual gap measurement, not just a standard width assumption.
